Electric Vacuum Pump with Pressure Gauge, 5 CFM, 110V

  • NC-14315
Price: $199.95
Sorry, Out of Stock.

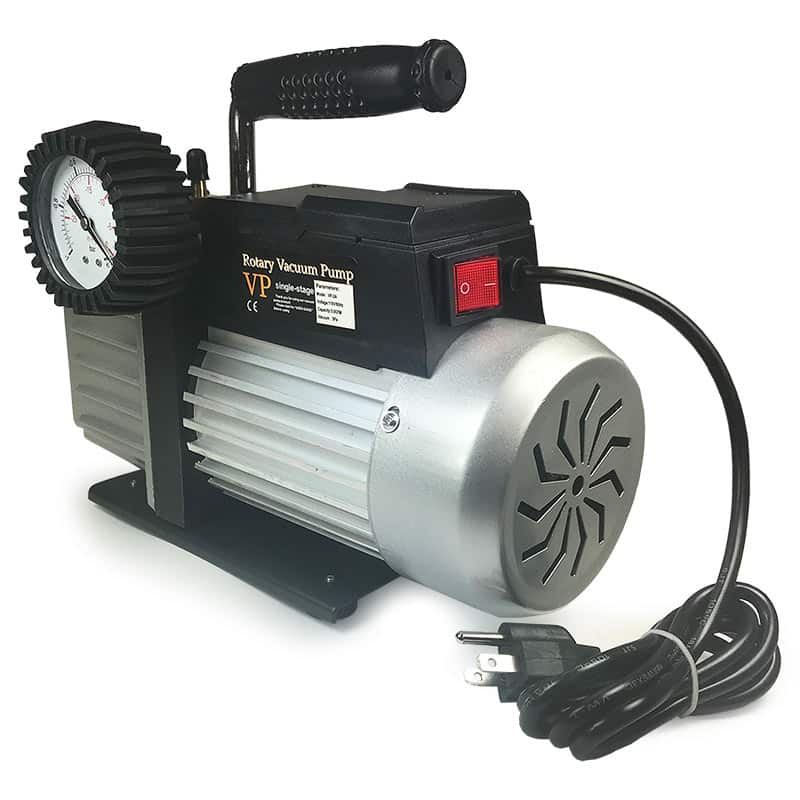

This 110V, 5 CFM, high quality, single stage, single stroke, oil-rotating-vane vacuum pump produces less noise and vibration, while using less energy.

The pump's special design protects the environment and provides clean filtered oil to the pump while it also can prevent oil spray and oil flowing back into and polluting the system.

Alloy aluminum casing and direct drive design make for a compact and light but durable pump that runs steadily for a long period of time even in a lower temperature environment and lower voltage.

Convenient gauge and adapter allow for easy adaptability to experiments. CE Certified, Includes manual and bottle of oil (HFV 32).

Vacuum Pump Specifications:

  • Free Air Displacement: 5.0 cu ft/min at 60 Hz
  • Voltage: 110V / 60 Hz
  • Motor: 1/3 HP
  • Oil Capacity: 250 ml
  • Ultimate Vacuum: 5 PA / 0.05 Mbar
  • Rotating Speed: 1720 rpm
  • Dimensions: 10.83" x 4.453" x 8.743" (275x113x222mm)
  • Weight: 16.8 lb (7.62kg)
  • Gas Inlet Size: Fits 1/4 ID tubing.
