• Mfr. Name: Scilogex, LLC
    Mfr. Cat No: MS-H280-Pro
    Max Stir Capacity: 3L (H2O)
    Temp. Range: 25° to 280°C
    Speed. Range: 100 to 1500 rpm

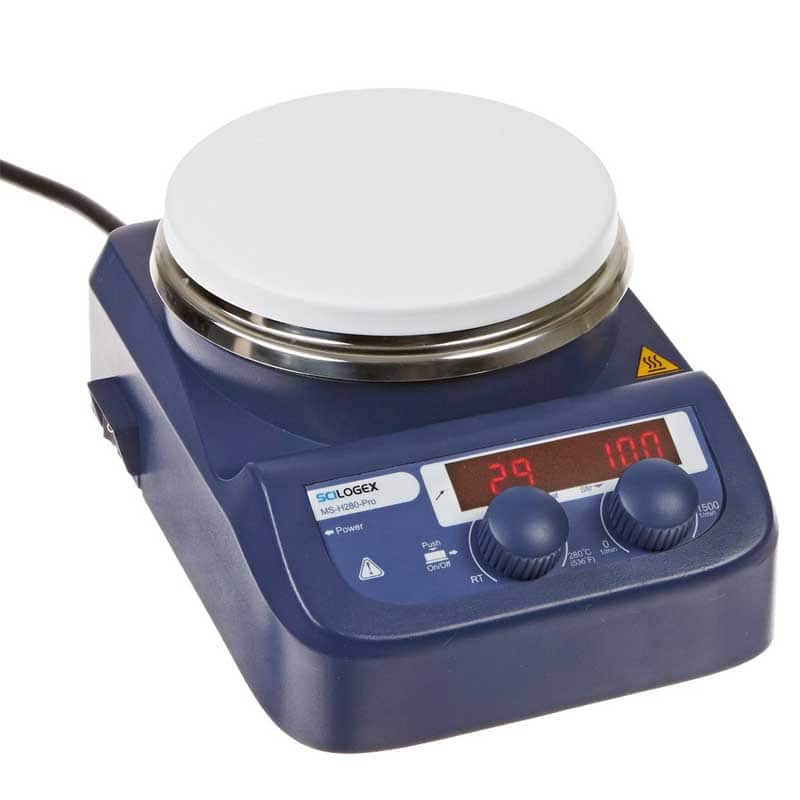

Scilogex Ceramic Hotplate 3L Stirrer (MS-H280-PRO)

  • NC-14110
Retail Price: $445.00
Price: $334.00
Sorry, Out of Stock.

The Scilogex MS-H280 hotplate-stirrer is a very economically priced LED digital hotplate-stirrer ideal for temperatures below 280°C. This compact unit can be used as a hotplate, stirrer or combination. Includes external sensor and the sensor support rod and clamp.

Features...

  • Heat only, stir only or heat and stir together functions.
  • Digital temperature control with max. temperature up to 280°C.
  • Digital speed control with max. speed up to 1500rpm.
  • Stainless steel work plate with ceramic coating provides good chemical resistant performance and easy cleaning.
  • LED display shows temperature and speed.
  • External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.5°C.
  • The “HOT” warning will flash when the work plate temperature is above 50°C even if the hotplate is turned off.
  • Accessory reaction blocks for flasks and vessels available.
  • Electronic speed control for constant speed even during changes in load.
  • cTUVus approved for UL and CSA.
  • 2 Year Warranty.

Specifications...

  • Scilogex Part No.: 861431019999
  • Includes:

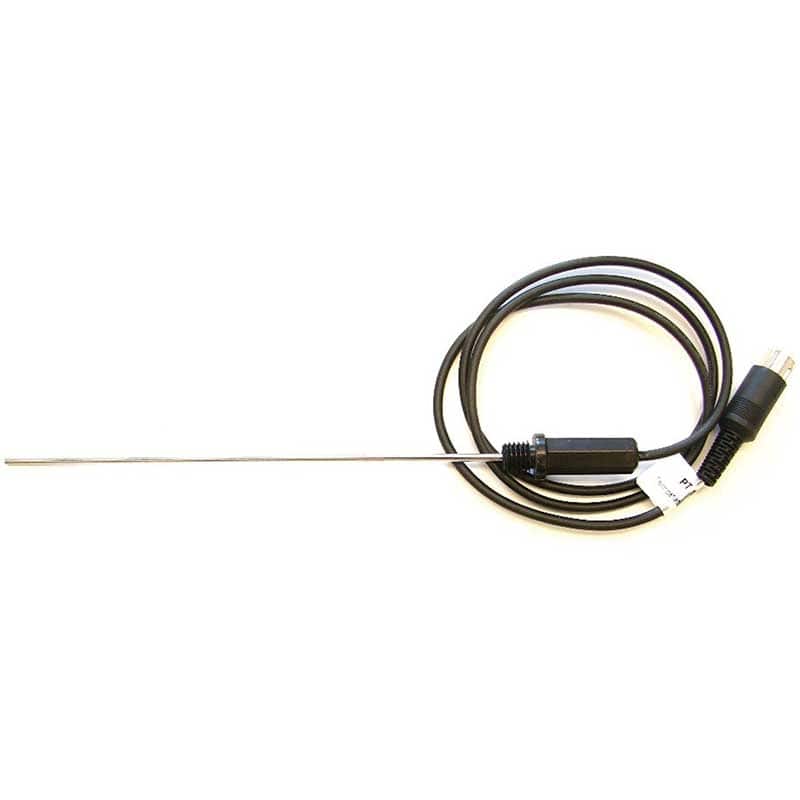

    • PT1000 Sensor (Part. No. 18900016)

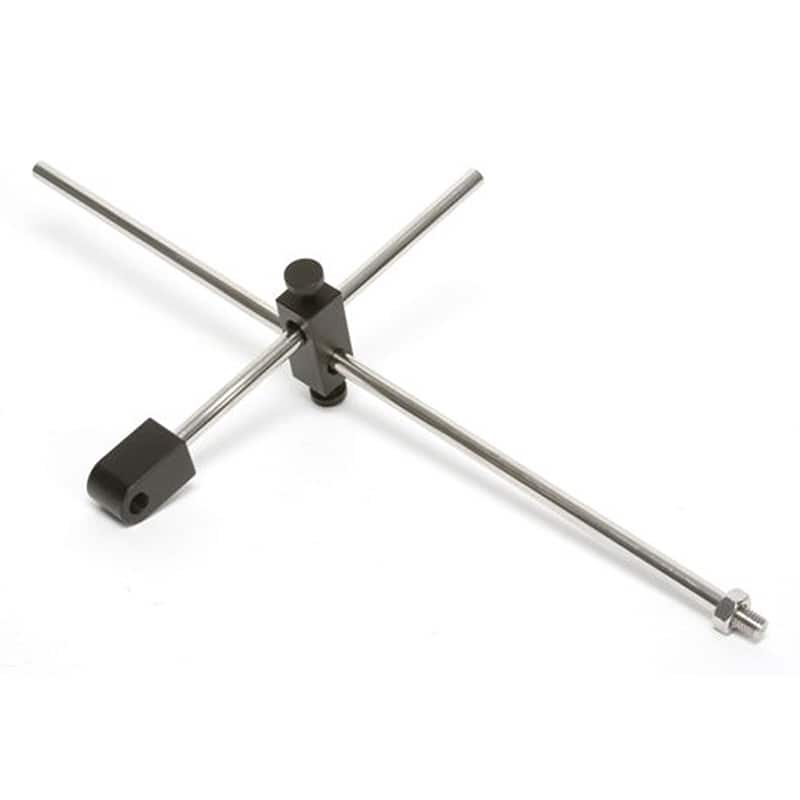

    • PT1000 Sensor support rod & clamp. (Part No. 18900148)
  • Work plate dimension: 135mm (5 inch) dia.
  • Work plate material : stainless steel cover with ceramic
  • Motor type: Brushless DC motor
  • Motor input power: 5W
  • Motor output power: 3W
  • Power: 515W
  • Heating output: 500W
  • Voltage: 100-120/200-240V 50/60Hz
  • Stirring positions: 1
  • Max. stirring quantity: 3L
  • Max. magnetic bar [length]: 50mm
  • Speed range: 100-1500rpm
  • Speed display: LED
  • Temperature display: LED
  • Speed display resolution: ±1rpm
  • Heating temperature range: Room Temp. to 280°C, increment 1°C
  • Temperature control accuracy: ±1°C (100°C)
  • Overheating protection: 320°C
  • Temperature display accuracy: ±1°C
  • External temperature sensor: PT1000 (accuracy ±0.5°C)
  • "Hot" warning: 50°C
  • Protection class: IP21
  • Dimension [WxDxH]: 150x260x80mm
  • Weight: 4lb. (1.8kg)
  • Permissible ambient temperature and humidity: 5-40°C, 80% RH
