• Mfr. Name: Scilogex, LLC
    Mfr. Cat No: OS20-S (20L)
    Speed. Range: 50-2200 rpm

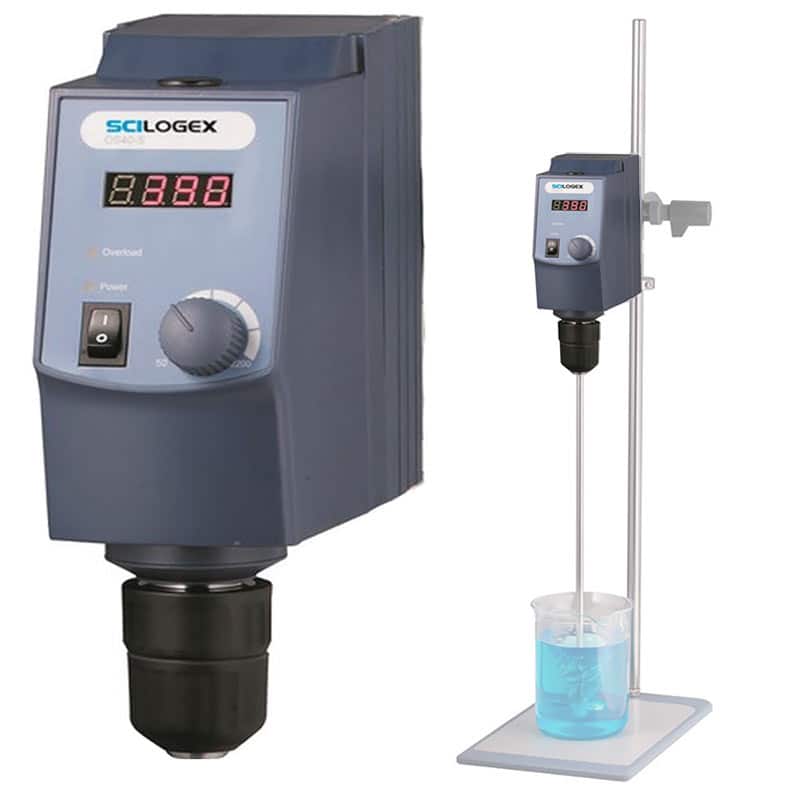

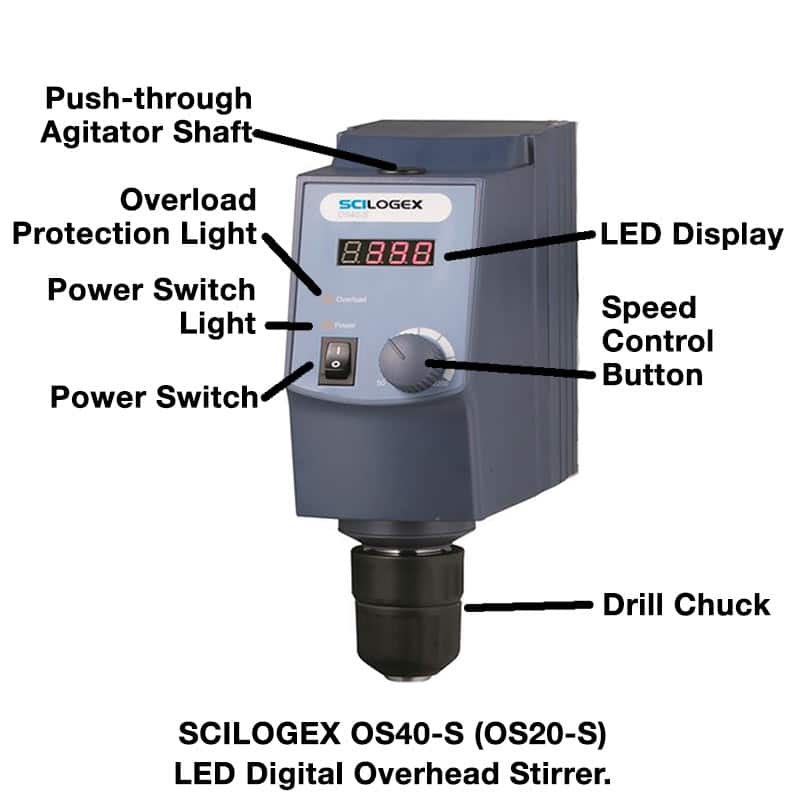

Scilogex LED Digital Overhead Stirrer (OS20-S)

  • NC-14130
Retail Price: $798.00
Price: $598.00
- +

The SCILOGEX OS20-S is a very efficient and carefully controlled digital overhead stirrer for the safe and effective mixing of large volumes of liquids. It provides a precise display of the actual speed which is selected via an analog dial.

The overhead stirrer is sold by itself. If you need them, a plate support stand and a cross shaped impellar stirrer rod are optionally available.

NC-14031 Plate Support Stand. (+$169.95)

NC-14032 Cross Stirrer. (+$20.00)


  • High reliability and outstanding performance.
  • A wide range of speed from 50 to 2200rpm.
  • Analog speed control is displayed on the LED display.
  • Brushless DC motor for long, maintenance free life.
  • High torque for viscous medium stirring.
  • Safety circuits allow for safe stop function in anti-stall or overload conditions.
  • LED screen for monitoring actual speed.
  • Over torque protection automatically stops the motor.
  • A through-shaft design allows for easy adjustment of the impeller position.
  • Large chuck diameter for many shaft types.
  • Pass through stirrer rods accepted.
  • Keyless chuck.
  • Multi voltage.
  • cTUVus approved for UL and CSA.
  • 2 Year Warranty.

Overhead Stirrer Specifications...

  • Maximum stirring capacity: 20 Liters
  • Maximum torque: 40Ncm
  • Viscosity maximum: 10000mPas
  • Speed range: 50-2200rpm
  • Speed display accuracy: 3rpm
  • Speed display resolution: 1rpm
  • Chuck diameter range: 0.5-10mm
  • Dimensions: 3.3W x 8.7H x 7.3D (inches)
  • Motor rating input: 60W
  • Motor rating output: 50W
  • Weight: 5.5lbs
  • Voltage/Power: 110-220Volts 50/60Hz/ 70W
  • Motor type: brushless DC motor
  • Speed display: LED
  • Overload protection display: LED lights
  • Protection class: IP42
  • Permissible ambient temperature and humidity: 5-40C, 80%RH

SCILOGEX Overhead Stirrers can accomplish the most demanding tasks and provide high safety and increased performance. They are widely used in chemical synthesis, pharmaceutical synthesis, physical and chemical analysis, petrochemical industries, etc.
